- HoneyWell PR2 / PR3
型錄下載HoneyWell PR2 & PR3
耐用型移動票據印表機
專為滿足移動領域的專業人士對全天的舒適性和耐用性的需求而設計, 輕便小巧的霍尼韋爾PR3和PR2耐用型移動票據印表機是敏捷的員工團隊的最佳選擇。該系列印表機擁有3英寸（PR3）和2英寸（PR2）兩個版本，其列印速度和緊湊性為其帶來了競爭優勢，使其成為移動發票列印和移動銷售點（mPOS）應用的理想選擇。
PR系列印表機小巧緊湊、品質輕盈且堅固耐用，這意味著它們適於舒適地佩戴一整天。各種智慧附件，如附帶的皮帶扣、可選的腰帶環或肩帶，可最大化保證用戶的舒適度，同時確保印表機可隨手取用。

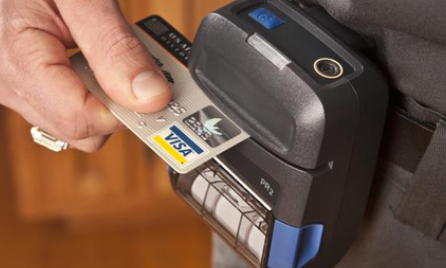

作為當今智慧設備的理想伴侶，PR系列印表機可通過安全Bluetooth® 2.1、Wi-Fi、USB或IrDA進行連接，列印所需票據。增加的MFi認證簡化了與Apple iOS設備的配對，集成的近場通信（NFC）技術讓藍牙配對過程比以往更迅速。配上可選用的集成的PCI相容讀卡器，PR系列印表機還可讓您的移動團隊在移動過程中安全獲取付款並立即提供票據，從而提升效率和客戶滿意度。

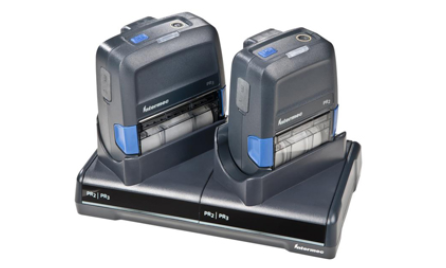

PR系列及其附件以增強效率並降低總體擁有成本為設計主旨。該系列印表機與霍尼韋爾創新型FlexDock底座和充電系統相連接，提供與其他霍尼韋爾設備共用的通用介面。腰帶環、防護殼和保護套增加了全班次操作的舒適度並提升了人體工學體驗。現場可更換的電池可從印表機上拆除後單獨充電，進一步最大化地提升正常工作時間和方便性。
Specifications
MECHANICAL
Dimensions (W x H x L):
PR2: 88 mm (3.46 in) x 63 mm* (2.48 in) x 122.5 mm (4.82 in)
PR3: 109.5 mm (5.01 in) x 63 mm* (2.48 in) x 122.5 mm (4.82 in)
Note: Height for models with Magnetic Stripe Reader differs - 65mm (2.56")
Weight(with battery, excluding media):
PR2: 309 g (10.9 oz)
PR3: 346 g (12.3 oz)
ENVIRONMENTAL
Charging Temperature:
0°C to 40°C (32°F to 104°F)
Drop Spec:
1.2 m (4 ft) drop to concrete per MIL STD 810G, 1.5 m (5 ft) multiple drops to concrete with optional environmental case.
Rain and Dust Resistance:
IP42, IP54 with optional environmental case
Humidity:
Operating humidity: 20% to 85% non-condensing Stprage humidity: 5% to 95% non-condensing
Operating Temperature:
-10°C to 50°C (14°F to 122°F)
Storage Temperature:
-20°C to 60°C (-4°F to 140°F) without battery
MEMORY
RAM Memory:
16 MB
Flash ROM:
64 MB
POWER
AC Adapter:
100 to 240 VAC 10VDC@1.0A; meets CEC EPS
Battery Type:
Standard Battery: Rechargeable, removable, 7.4V Li-Ion, 1620mAh Smart Battery: Rechargeable, removable, 7.4V Li-Ion, 1620mAh. Includes integrated fuel gauge to monitor battery charge levels, and report impedance and list battery pack serial number for the battery in use.
Endurance Per Fully Charged Battery:
Endurance per fully charged battery at 6% print density: PR2: 118 m (387 ft); PR3: 89 m (292 ft)
Recharging Time:
approximately 240 minutes
PRINT SPECIFICATIONS
Media Type:
Receipt media
Max Print Width:
PR2: 48 mm (1.89 in)
PR3: 72 mm (2.83 in)
Max Width:
PR2: 57 mm to 58 mm (2.244 in to 2.283 in)
PB3: 79 mm to 80 mm (3.110 in to 3.149 in)
Print Speed:
203 dpi (8 dots/mm)
PR2: Up to 3 ips (76.2 mm/sec)
PR3: Up to 3 ips (76.2 mm/sec)
Print Technology:
Label Roll Max Diameter:
PR2: 1.6 in (40.64 mm)
PR3: 1.6 in (40.64 mm)
Label Roll Core:
Core ID: 10 mm (0.4 in)
Thickness:
60 μm to 100 μm (2.36 mils to 4 mils)
Length:
Continuous
Printhead:
Direct thermal
COMMUNICATIONS INTERFACE
Standard:
USB full speed V2.0
Optional:
Bluetooth (2.1, Class II), Bluetooth for iOS (2.1+EDR), Made for iPod/iPhone/iPad™ certified, NFC Technology for easy Bluetooth pairing
Graphics:
Supports user-defined fonts, graphics, including custom logos
SOFTWARE
Programming Language:
ESC/P (Line Print and Easy Print modes), CSim (CPCL) and XSim (Ex-PCL)
- Honeywell PrintSet Configuration Utility
- Bartender Ultralite Labeling Software
- SmartSystems Foundation Console/Server Software
- Bootloader Utility
- SDKs for Android, Apple iOS and Windows Mobile
- InterDriver Printer Drivers for Microsoft Windows PCs
SUPPORTED BARCODE SYMBOLOGIES
ESC/P:
1D: Codabar, Code 39, Code 128, UCC/ EAN-128, Interleaved 2 of 5, UPC-A, EAN13, EAN8 2D: Aztek, PDF417, QR Code
CSim (CPCL):
1D: Codabar, Code 39, Code 128, UCC/ EAN-128, Interleaved 2 of 5, UPC-A, UPC-E, EAN13, EAN8
XSim (Ex-PCL):
1D: Codabar, Code 39, Code 128 Subset A-C, UCC/ EAN-128, Interleaved 2 of 5, UPC/EAN/JAN 2D: PDF417
ACCESSORIES
- Belt loop
- Metal belt clip
- Shoulder strap
- IP54 protective environmental case
- Protective boot
- Printhead cleaning swab
- Spare battery
- Cigarette lighter adapter/12V vehicle battery charger
- FlexDock Modular docking system for on-board charging or spare battery charging
Optional:
Card Reader:
- Magnetic Stripe Reader (MSR) 3 track
- ANSI/ISO 7810, 7811 standards
- AAMVA, CA DVA, RAW
