產品介紹
品牌
HONEYWELL
型號
Honeywell PC43T/PC43
硬體規格
列印i寬度:4",解析度 203/300dpi
產品特色
桌上型條碼列印機
市場價格
型錄下載

PC系列

桌上型印表機

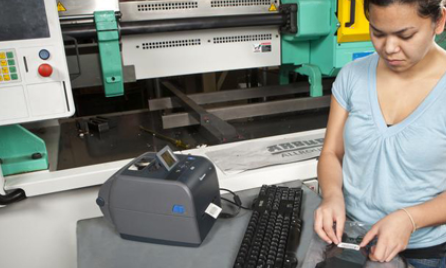

小巧緊湊的PC系列桌上型印表機專為使用者友好性和靈活性而設計，是一款直觀的標籤列印解決方案。PC系列印表機擁有兩英寸寬的直熱式（PC23d）、四英寸寬的直熱式（PC43d）或四英寸寬的熱轉印式（PC43t）機型，非常適合空間有限的環境。價格低廉和操作快捷的特點讓他們成為輕工業標籤列印的明智選擇，滿足用戶對可靠易用的印表機的需求。
PC系列印表機的設計旨在實現快速設置和無故障使用。這些印表機擁有各種安置方案，包括壁掛式和電池供電，可適應各自的環境並進行完美匹配。PC系列印表機都採用通用圖示介面或支援十種語言的彩色LCD，執行常見印表機任務非常簡單， 可降低培訓需求。甚至使用USB快閃記憶體盤即可現場配置和升級印表機，不需要通過電腦。

Specifications




PHYSICAL DESCRIPTION

The compact PC Series includes both direct thermal (PC23d and PC43d) or thermal transfer (PC43t) printers designed for self-adhesive labels, non-adhesive tags, linerless, floodcoat or continuous paper strip roll.



SPECIFICATIONS BY MODEL

Real-Time Clock:
Standard (LCD)

Adjustable Gap Sensor:
Standard (LCD)



MEDIA SPECIFICATIONS

Label Roll

Maximum Diameter:
127 mm (5 in)

Core Diameter:
Min. 25.4 mm (1 in); Max. 38.1 mm (1.5 in)

Paper Width

PC43:
Max. 118 mm (4.7 in); Min. 19 mm (0.75 in)

PC23d:
Max. 60 mm (2.36 in); Min. 15 mm (0.59 in)

Label Length:
Min. 6.35 mm (0.25 in)

Labels:
A wide selection of stock and custom size labels are available from Honeywell Media

Ribbon Roll:
PC43t accepts both 12.7 mm (0.5 in) and 25.4 mm (1.0 in) core

Core:
12.7 mm ID (0.5 in ID) or 25.4 mm ID (1.0 in ID)

Min Width:
25.4 mm (1.0 in) – ribbon only, core width must be 111 mm (4.37 in)

Max Width:
110 mm (4.3 in)

Max. Length:
12.7 mm (0.5 in): 91 m (299 ft); 25.4 mm (1.0 in): 300 m (984 ft)

Thickness (Includes Liner):
0.06 mm (0.003 in) to 0.15 mm (0.006 in); optional thick media spring kit for media up to 0.20 mm (0.008 in)

Ribbons:
A wide selection of widths and formulations available

Connect to Print:
The printer comes with all included: software, drivers, USB cable, power adapter, power cord, a handy QuickGuide to facilitate getting started, a PrinterCompanion CD with label design program, Windows® driver, configuration software and documentation



SOFTWARE

Printer Command Languages:

  • IPL, DP, ZSim2 (ZPL-II), DSim (DPL), ESim (EPL)
  • XML enabled for SAP® AII and Oracle® WMS

Applications/Drivers:

  • InterDriver Windows printer driver
  • CUPS driver for Linux
  • Honeywell Device Types for SAP
  • Honeywell Fingerprint – Use Honeywell Fingerprint Application Builder (IFAB)

Smart Printing Languages:

  • Honeywell C# for Printers
  • Smart Printing Developer Resource Kit
  • Write apps with .NET-compatible
  • Honeywell Fingerprint – Use Honeywell Fingerprint Application Builder (IFAB)

Configuration and Device Management Support:

  • PrintSet for printer configuration
  • Honeywell SmartSystems™ Foundation
  • Sophisticated web interface for configuration, upgrade and 1:1 management
  • Wavelink Avalanche™

Communications:
802.11 b/g



CHARACTER SETS/FONTS

Printing Character Sets:
English and Extended Latin, Cyrillic, Greek, Turkish, Hebrew, Arabic, Baltic, Baltic RIM, Vietnamese, Thai and more with Monotype Universal Font Scaling Technology (UFST) and WorldType Layout Engine (WTLE)

Resident Fonts:
Century Schoolbook, CG Times, CG Times Bold, Letter Gothic, Andale Mono, Andale Mono Bold, Univers, Univers Bold, Univers Condensed Bold, Univers Extra Condensed, OCR-A, OCR-B

Optional:
Support for downloading TrueType and TrueType-based OpenType fonts and user-defined fonts



LCD DISPLAY LANGUAGE

Standard:
English, French, German, Italian, Portuguese, Russian, Spanish

Optional:
Simplified Chinese, Traditional Chinese, Korean



BARCODE SYMBOLOGIES

All major one-dimensional barcode symbologies are available, plus two-dimensional and composite codes:
Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN-13, EAN.UCC 128, Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations

Environment (Printing):
+5°C to +40°C (+40°F to +104°F)

Humidity (Printing):
10–80% RH non-condensing

Materials:
Disinfectant-resistant plastic case will not be damaged when cleaned with any chemical in the following list. These chemical disinfectants and cleaning solutions have been successfully tested on the printers. Cleaning the printers by using a wipe or cloth dampened by any of the following disinfectants or cleaning solutions will not cause damage to the printer case or media window.



POWER ADAPTER

Separate Power Supply

Input:
100–240V AC/50–60 Hz, 1.5 A

Output:
24V DC, 2.5 A

Energy Star Compliant
Smart Battery unit accessory (PC43d only)



MEMORY

Standard:
128 MB Flash, 128 MB RAM (DDR2)

Optional:
Up to 32 GB via user USB thumbdrive

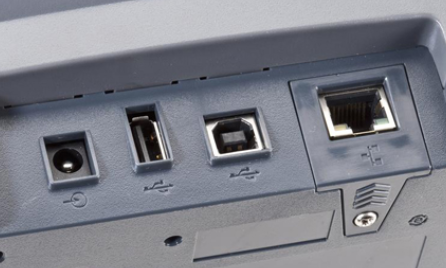

INTERFACE

Standard:
USB Device Type B connector v.2.0 high speed, USB Host Type A connector v.2.0 high speed

Field-Installable:
Ethernet 10/100 Mbps module, Dual radio module (802.11 b/g/n and Bluetooth V2.1), USB to Serial adapter (RS-232), USB to Parallel adapter



PROTOCOL

Serial Flow Control:
XON/XOFF, RTS/CTS (DTR/DSR)

Wireless Protocol:
WEP static (64/128 bits), WPA, WPA2, WEP dynamic, EAP-PEAP, EAP-TTLS, LEAP, EAP-FAST, EAP-TLS, Wi-Fi certified



PRINT SPECIFICATIONS

Maximum Label Width

PC43:
118 mm (4.65 in)

PC23d:
60 mm (2.36 in)


Maximum Label Length

Standard:
203 dpi – 1727 mm (68 in);

Print Direction:
Prints text, barcodes and graphics in all four directions

Print Resolution:
8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)


Print Width

PC43:
203 dpi – max. 104 mm (4.1 in); 300 dpi – max. 106 mm (4.2 in)

PC23d:
203 dpi – max. 56 mm (2.2 in); 300 dpi – max. 54 mm (2.1 in)

Printing Speed:
Selectable up to 8 ips (203.2 mm/ sec) for 203 dpi; 6 ips (152.4 mm/sec) for 300 dpi



REGULATORY APPROVALS

CE, FCC Class A, cULus, UL, GS, TUVGS, BSMI, D Mark, cUL, CCC (China), KCC (South Korea), C-Tick (Australia/New Zealand)



FACTORY-INSTALLED OPTIONS

13.56 MHz HF RFID ISO 15693 (PC23d), UHF RFID (PC43)



SERVICE

No tools required to replace printhead and platen roller, user-accessible odometer



USER INTERFACE

Choice of:

  • 59.94 mm (2.36 in) color LCD, 314 x 234 resolution in 10 languages, 8 buttons and ready-to-work LED
  • Graphical back-lit icons: cover open, paper out, ribbon out (PC43t), general error, maintenance, pause, thermal printhead too hot, data status, wireless status (if installed), Bluetooth status (if installed), ready-to-work LED and one Print/Feed button
  • User-configurable audio sounds with volume levels


INDUSTRY APPROVALS

Healthcare:
Epic (Validated), McKesson (Certified), Sunquest (Validated)



SAFETY APPROVALS

North America:
UL and cUL Listed, UL 60950-1

Europe:
D Mark, EN 60950-1; CE marked

Mexico:
NYCE Certified, NOM 19

Other Countries:
IEC 60950-1



EMC APPROVALS

USA FCC Title 47, Part 15, Subpart A, Class B;

Europe EMC Directive (EN55022 Class B + EN55024); CISPR22



WARRANTY

One-year standard warranty; additional service packages available through Honeywell Repair Services
