- Honeywell PM43 條碼機

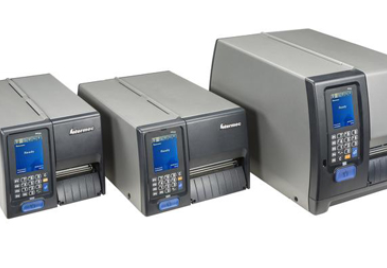

型錄下載PM43/PM43c (101.6 mm/4 in) 和 PM23c (50.8 mm/2 in) 中級範圍印表機更具可靠性，可更快實施部署和集成，以及更快高級連接以最大化您的執行時間。其為分銷中心、倉庫、生產運行和交通中心應用的理想之選。
PM 系列易於集成和快速部署。

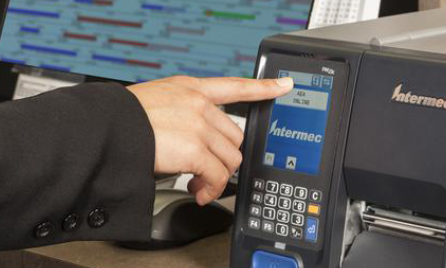

通過充滿活力的彩色觸控式螢幕或直觀的圖示使用者介面等直觀功能，最大程度減少培訓和設備支援需求。螢幕右側顯示通知，該介面可鎖定以避免他人篡改。
PM 系列的–分類擁有最廣泛的連接選擇，包括無線和 Cisco CCX 認證、以及其他 Bluetooth® 連接，可快速對接幾乎所有 IPv4 或 IPv6 網路。
PM 印表機配備堅固的金屬外殼和頂級列印速度（304 mm/s (12 ips)），在困難條件下可提供傑出性能。除加快生產外，PM 印表機還可減少標籤錯誤和增加流程效率，使工作更智慧化。
印表機內部的應用程式能夠直接控制其他設備，如掃描器、電子稱、鍵盤和其他週邊– 設備，無需附加電腦。
Max Width:
PM23c: Max. Width at 203dpi: 56 mm (2.2 in) Max. Width at 300 dpi: 56 mm (2.2 in) Max. Width at 406 dpi: 64 mm (2.5 in)
PM43/PM43c:Max. Width with 203 dpi: 108 mm (4.25 in) Max. Width with 300 dpi: 106 mm (4.17 in) Max. Width with 406 dpi: 104 mm (4.09 in)
Max length:
PM43/PM43c:Depending on width (203 dpi to 406 dpi): (1.2 m) 48 in to (4.8 m) 191 in
Print Speed:
PM23c:At 203/300 dpi: 100-300 mm/s (4-12 ips) At 406 dpi: 100-250 mm/s (4-10 ips)
PM43/PM43cc:100 – 300 mm/s (4 – 12 ips) variable (203/300 dpi) 100 – 250 mm/s (4 – 10 ips) variable (406 dpi)
Resolution:
PM23c:At 203 dpi: 8 dots/mm At 300 dpi: 11.8 dots/mm At 406 dpi: 16 dots/mm
PM43/PM43c:8 dots/mm (203 dpi) 11.8 dots/mm (300 dpi) 16 dots/mm (406 dpi)
Media Type:

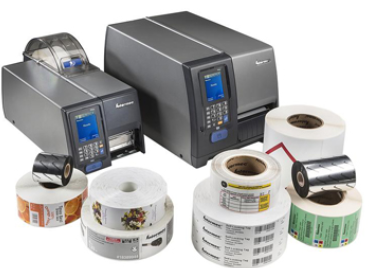

Labels and Tags, Linerless and Linered media
Max label width:
PM23c:Max/Min Width: 68.6mm/2.7 in (19.05mm/0.75in)
PM43/PM43c:Max/Min Width: 114.3 /19.05 mm (4.5 /0.75 in)
Thickness:
PM43/PM43c:3 to 10.4 mil
Style:
PM23c:Roll-fed or fanfold PM43/PM43c:Roll-fed or fanfold
Sensing:
PM23c:Gap, notch, black mark, continuous PM43/PM43c:Gap, notch, black mark, continuous
Label Roll Max Diameter:
PM23c:Long Door: 152 mm (6 in) All Other Doors: 213 mm (8.38 in)
PM43/PM43c:Long Door: 152 mm (6 in) All Other Doors: 213 mm (8.38 in)
Label Roll Core:
PM23c:38-76 mm (1.5-3 in)
PM43/PM43c: 38 – 76 mm (1.5 – 3 in)
Media Type:
PM23c: Ribbons PM43/PM43c: Ribbons
Label Roll Max Diameter:
PM23c: 61 mm (2.40 in), 229 m
PM43/PM43c: 80 mm (3.15 in), approx. 450m
Label Roll Core:
PM23c: Core ID: 25 mm (1 in)
PM43/PM43c: Core ID: 25.4 mm (1 in)
Media Type:
PM23c: Wax, mid-range, resin
PM43/PM43c: Wax, mid-range, resin

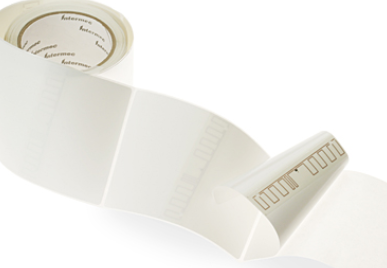

Media Type:
PM23c: RFID
PM43/PM43c: RFID
RFID Standards and Frequencies:
PM23c: 18000-6C / EPC Class 1 Generation 2 865-928 MHz radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular regions.
PM43/PM43c: 18000-6C / EPC Class 1 Generation 2 865-928 MHz radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular regions.
MEMORY
SDRAM
PM23c:128MB
PM43/PM43c:128MB
Flash ROM
PM23c:128MB
PM43/PM43c:128MB
Memory/Storage Extensions PM23c: Multi-GB USB memory device (FAT16/FAT32)
PM43/PM43c: Multi-GB USB memory device (FAT16/FAT32 USB drivers supported)
